DESIGN&MANUFACTURE OF
PREMIUM AIR MOVEMENT
PRODUCTS
EC INLINE FANS.COMPONENT FANS.AIR FILTERS
POWERFUL AIR BOOSTER FOR HVAC OR FRESH AIR SYSTEM
Cutting-edge EC motor with variable speed controller
WELL WORLDWIDE RECOGNIZED INLINE FANS FOR HYDROPONICS
Efficiently and effectively remove odor for grow tents or circulate air within commercial vertical farming system
Page 1 of 3

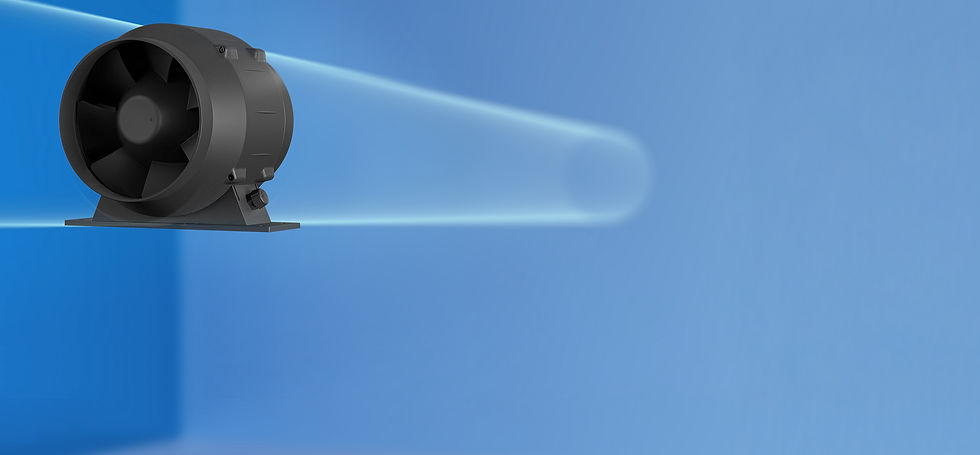

EC INLINE FAN
Revolutionizing Ventilation
SENSDAR introduces cutting-edge solutions for HVAC systems, featuring jet-engine-inspired blade design and EC motor technology
Different motor concepts allow for varied speed controls (PWM, 0-10V)
Selected series meet EN60335-80-2 certifications, catering to market demands
Key Specs
Power ranges from 18W to 550W
Volumetric flow up to 4369 m3/h
Page 1 of 3
Page 1 of 2
SILENCED EC FAN
SENSDAR Silenced EC fans are appropriate for circular ventilation setups
Their distinctive design ensures a noise-free operation
Key Features
Rotatable spring Anti-Vibration design
Metal painted Leak-Free acoustic housing
Hanging brackets ensure more safety and no swing after installation
High density acoustic foam
Page 1 of 2
Model | Size | Motor Type | Bearing Type | Reted Voltage | Speed Level | Max Speed | Max Air Flow | Max Air Pressure | Max Noise |
|---|---|---|---|---|---|---|---|---|---|
SE28080(X)(Y) | 280*280*80(mm) | EC | Ball | 115-230 VAC | H
M
L | 3200RPM
2500RPM
2000RPM | 1502.5CFM
1422.2CFM
951.0CFM | 30.6mmH²O
30.6mmH²O
21.0mmH²O | 71.5dBA
65.6dBA
60.2dBA |
SE2589(X)(Y) | Φ254*89.5(mm) | EC | Ball | 115-230 VAC | H
M
L | 3200RPM
3000RPM
2800RPM | 1195.3CFM
1120.6CFM
1050.8CFM | 21.2mmH²O
21.2mmH²O
21.2mmH²O | 72.4dBA
71.0dBA
69.5dBA |
Page 1 of 9
COMPONENT FAN
SENSDAR provides an extensive selection of axial fans for thermal management, featuring various sizes and constructed with either sleeve or ball bearings, ensuring a lifespan of up to 50,000 hours
These fans are versatile, ideal for application in machinery process cooling, targeted cooling solutions, and enhancing air quality in places like indoor spaces, data centers, factories, and foundries
Key Features
UL certification
Size ranges from 20mm to 280mm
Support customization on size, speed and signal
Model | Size | Motor Type | Bearing Type | Reted Voltage | Speed Level | Max Speed | Max Air Flow | Max Air Pressure | Max Noise |
|---|---|---|---|---|---|---|---|---|---|
SE28080(X)(Y) | 280*280*80(mm) | EC | Ball | 115-230 VAC | H
M
L | 3200RPM
2500RPM
2000RPM | 1502.5CFM
1422.2CFM
951.0CFM | 30.6mmH²O
30.6mmH²O
21.0mmH²O | 71.5dBA
65.6dBA
60.2dBA |
SE2589(X)(Y) | Φ254*89.5(mm) | EC | Ball | 115-230 VAC | H
M
L | 3200RPM
3000RPM
2800RPM | 1195.3CFM
1120.6CFM
1050.8CFM | 21.2mmH²O
21.2mmH²O
21.2mmH²O | 72.4dBA
71.0dBA
69.5dBA |
SE2280(X)(Y) | 224*224*80(mm) | EC | Ball | 115-230 VAC | H
M
L | 3500RPM
3000RPM
2500RPM | 932.9CFM
801.7CFM
644.1CFM | 41.1mmH²O
30.7mmH²O
21.2mmH²O | 73.1dBA
69.4dBA
65.0dBA |
SE2260(X)(Y) | 222*212*60(mm) | EC | Ball | 115-230 VAC | M
L | 2500RPM
2000RPM | 524.8CFM
423.6CFM | 14.9mmH²O
9.7mmH²O | 48dBA
50dBA |
Page 1 of 5
Model | Duct Opening | Length | Air Flow | Medium | Grade | Carbon Bed | Carbon Weight | Total Weight | Filter Type | Housing Material | |
|---|---|---|---|---|---|---|---|---|---|---|---|
SF1240 | 12inch/319mm | 40inch/1010mm | 1800CFM/3060M³H | Premium Charcoal | RC-48 | 1.8inch/45mm | 26.4kg | 33.5Kg | Pre-filter | Cold rolled steel | |
SF1230 | 12inch/319mm | 30inch/765mm | 1600CFM/2717M³H | Premium Charcoal | RC-48 | 1.8inch/45mm | 24kg | 31.5Kg | Pre-filter | Cold rolled steel |
Page 1 of 7
ACTIVATED CARBON AIR FILTER
Remove harmful pollutants and chemicals from your indoor air with SENSDAR activated carbon filters
Key Features
50% perforated open area
45mm bed depth of RC48 virgin activated granular carbon
2 pieces of velcro pre-filters included
Machine packed to fill more carton
Built in flange
Page 1 of 4
